Schema Viewer G4

Key Features

  • Open and view (read-only) schemas and workspaces created in Design Pad G4
  • Programs the Chameleon product line
  • Works in Windows 98, 2000, NT, and XP

Product Description

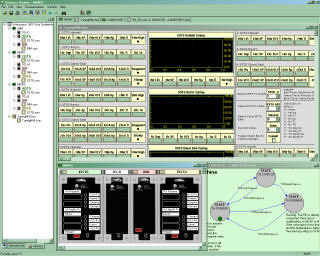

Schema Viewer is intended to open, view, and download into field devices graphical programs  and HMIs created in Design Pad G4.  The programs can not be altered in any way from Schema Viewer.  Typically, Schema Viewer is deployed to personnel who may need to download a program into field devices but should not alter the program.

Fairmount Part Number

Description
92009-000

Schema Viewer G3 Software
92009-100 Schema Viewer G4 Software
01004-102

Chameleon Programming Cable: USB to RS232 to
IrDA with Holder
