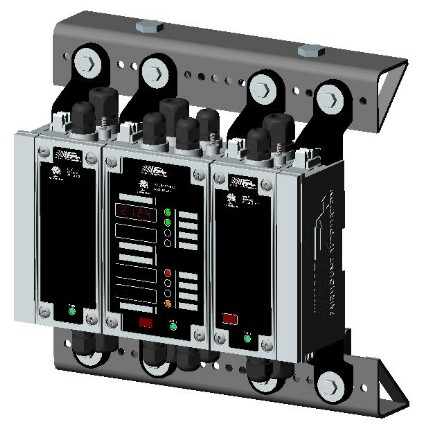

Chameleon mounting rails provide an easy
and universal method to mount Chameleon modules to a surface which requires
a welded/bolted structure between the mounting surface and the PAC.
The rails are especially useful in rugged industrial or military
applications where the mounting scheme must occupy minimum volume and be
light weight.
The rails are composed of the following parts:
Mounting Foot: The foot connects the rail to the mounting surface and is designed to
allow a choice of welded or bolted connection to the surface. A bolt
connects the foot to the rail.

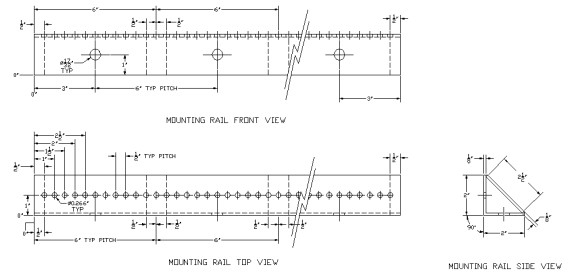

Mounting Rail: Rails include Chameleon mounting holes precut every half inch to ensure
compatibility with any possible node configuration. They also have
foot mounting holes every 6 inches. Rails come in a variety of lengths
which then can be cut to a desired length for installation.

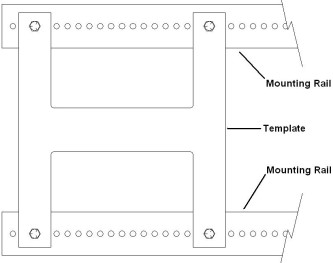

Mounting Rail Template: During installation it is important to set the rail-to-rail separation
to match the Chameleon footprint. It may not be desirable to mount the PAC on
the rails during drilling, welding, and/or hammering operations. The
mounting rail template is available as a temporary spacer that ensures correct
spacing without fear of damaging the controller.

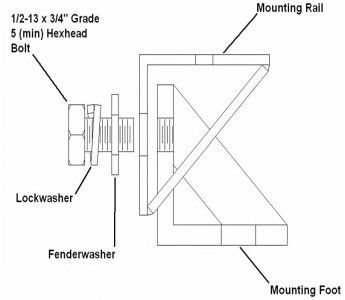

Mounting Rail Fastener
Hardware: A bolt, lock washer, and fender washer are required for each foot/rail
junction. They can also used for bolted connections to the mounting
surface.
Below are four example mounting
configurations.

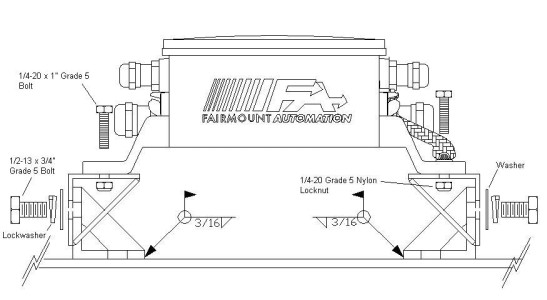

1) Weld Mount:

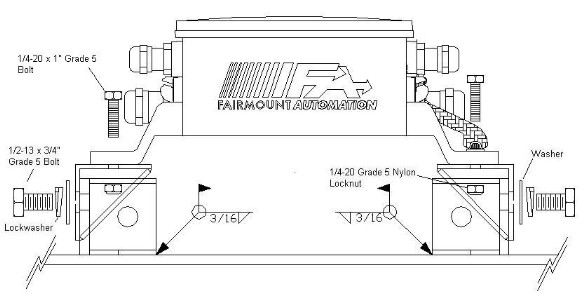

2) Side Weld Mount:

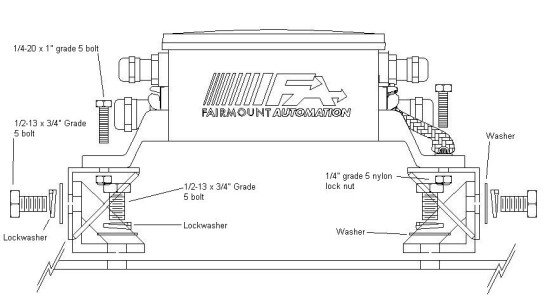

3) Bolt Mount:

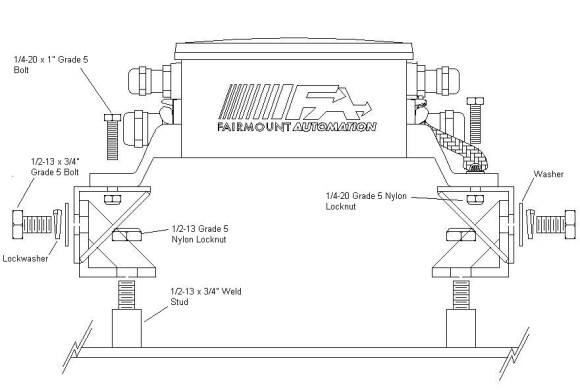

4) Stud Mount:
Use the part numbers in the
table below when ordering the mounting rails:
Fairmount Part Number
Description
21027-002
Chameleon Mounting Rail Foot
21034-001
Chameleon Mounting Rail (24"
Length)
21034-002
Chameleon Mounting Rail (36"
Length)
21034-003
Chameleon Mounting Rail (42"
Length)
21034-000
Chameleon Mounting Rail
Installation Template
50040-009
Chameleon Mounting Rail Bolt,
Lockwasher,
and Fenderwasher (25 pack)
