ECS-1 Serial Expansion Card - Fairmount Automation

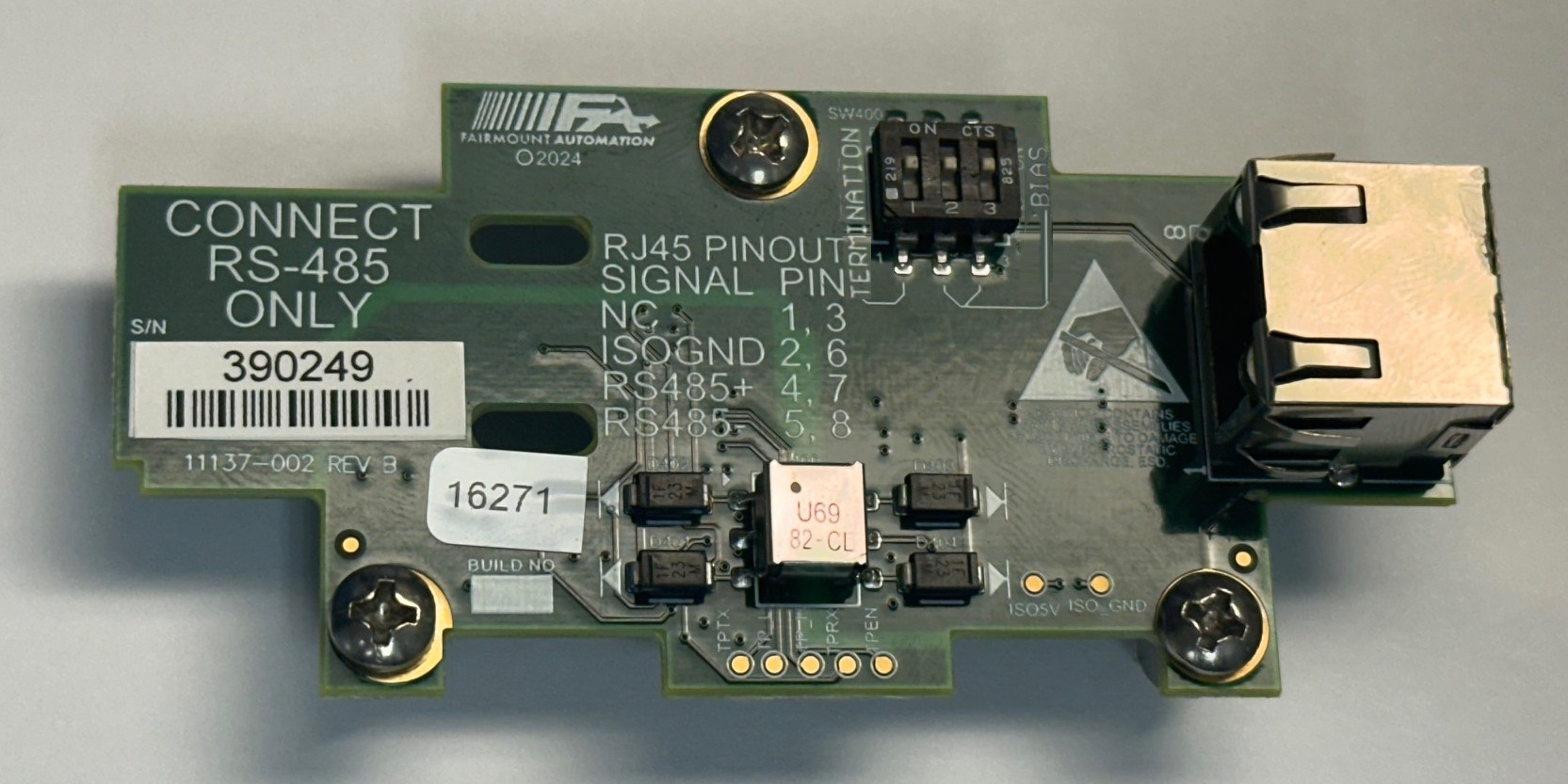

This expansion card can be added to any Chameleon+ analog or discrete module to give the module one RS-485 serial port for communications. The module supports Modbus ASCII, Modbus RTU, FairNET, Custom ASCII, and Custom Binary communication protocols. It also includes onboard (selectable) network termination and biasing.

Fairmount Part Number	Description
11137-100	Chameleon+ Serial Expansion Card
